Drønbreen: polythermal glacier and the enthalpy module

Many glaciers outside the tropics are polythermal: part of the ice is cold, below its pressure-melting point and effectively free of liquid water, and part is temperate, at the melting point and carrying water between the grains. The two behave very differently — temperate ice is softer, deforms faster, and lets water reach the bed — so where the boundary between them sits shapes how the glacier flows.

This tutorial models that boundary — the cold–temperate transition surface (CTS) — on Drønbreen, a Scandinavian-type polythermal glacier in Nordenskiöld Land, Svalbard, and calibrates it against ten ground-penetrating radar (GPR) lines that mapped the real CTS in March 2022 (Mannerfelt et al., 2025)1. It is the reference example for IGM's enthalpy module, and it also exercises subglacial_hydrology in till_storage mode.

Why an enthalpy formulation

Tracking temperature alone cannot describe temperate ice, whose temperature is pinned at the melting point however much heat is added — the extra energy goes into water content instead. Enthalpy carries both in one variable: the ice is temperate wherever E >= E_pmp, and the CTS is the level where the two meet. IGM follows the enthalpy formulation of (Aschwanden et al., 2012)2.

Setup

Clone the examples repository and move into the Drønbreen folder:

git clone https://github.com/instructed-glacier-model/igm-examples.git
cd igm-examples/enthalpy-dronbreen

All data ships with the repository — nothing is downloaded. The folder layout is:

enthalpy-dronbreen/
  data/                # input_dronbreen.nc + cts_gpr/ (the radar observations)
  experiment/          # one params_stepN_*.yaml per step (+ common/ fragment)
  optuna/              # sweeper configuration for Step 2
  tools/               # post-processing scripts, and the shared CTS diagnostic
  user/                # custom process modules
    code/processes/    # Python source files
    conf/processes/    # Hydra config stubs

Beyond IGM itself, the calibration and the plotting scripts need optuna, pandas, scipy, netCDF4 and xarray.

Tip

Prefix any command with TF_CPP_MIN_LOG_LEVEL=3 to silence verbose TensorFlow logging. Results are written to a timestamped subfolder under outputs/ (or to the directory passed via hydra.run.dir=).

Step 1: Thermal spin-up on a fixed geometry

The first experiment runs Drønbreen from 1900 to 2022 under a constant climate derived from CARRA reanalysis, and lets the thermal state come into equilibrium with it.

How it works

Four processes form a loop, and the order in the configuration is not arbitrary:

  1. clim_carra_ela (custom) turns the two 2-D air-temperature fields in the input file into the monthly series the enthalpy surface boundary condition expects.
  2. iceflow solves for the velocity field, which supplies the strain heating inside the ice and the frictional heating at the bed.
  3. enthalpy advects and diffuses that heat, producing E, E_pmp, the temperature T and the water content omega.
  4. arrhenius converts the new temperature into a flow-rate factor, which softens the ice and feeds back into the next ice-flow solve.

subglacial_hydrology closes the loop at the bed: in till_storage mode it evolves a till water layer fed by basal melt, and derives an effective pressure from it. That mode requires enthalpy to have run before it, since basal melt is an enthalpy output.

There is deliberately no thk process. The geometry is held fixed, so the ice surface never moves and only the thermal state evolves. That is the honest setup for the question being asked — the observations to be reproduced are a thermal structure, not a geometry — and it keeps the run cheap.

How long does a thermal spin-up need to be?

Long enough to forget its initial condition, and no longer. For this glacier the modelled CTS settles within about 70 years of the start, so 1900–2022 is comfortable. Starting in 1600 instead costs four times the compute and moves the misfit by under 2%. It is worth measuring this for your own setup rather than assuming centuries are required: save at a short interval, plot a bulk diagnostic such as the mean temperate-layer thickness against time, and read off where it flattens.

The two vertical grids are independent

iceflow uses Nz: 2 because the MOLHO basis represents the vertical velocity profile analytically — two degrees of freedom per column are enough. enthalpy uses Nz: 30, packed towards the bed by vert_spacing: 4.0, because the CTS is a sharp feature sitting in the lower part of the column. Mixing the two up is the classic mistake here; the example keeps them explicitly separate, and the saved NetCDF gives the thermal fields their own vertical dimension.

The refreezing proxy

On a Scandinavian-type polythermal glacier, most temperate ice does not form at the bed. It forms in the accumulation area, where summer meltwater percolates into the firn and refreezes, releasing latent heat that warms the ice to the melting point before it is buried and carried downglacier.

IGM does not model firn refreezing explicitly, so this example substitutes a deliberate proxy: above the equilibrium line, the air temperature driving the surface boundary condition is replaced by a constant.

# experiment/params_step1_spinup.yaml (excerpt)
processes:
  clim_carra_ela:
    ela: 666.0         # m a.s.l.
    T_ela: 0.42        # °C imposed above the ELA -- the refreezing proxy

This is a parameterisation, not physics. T_ela should be read as "the surface forcing that reproduces the observed thermal structure", not as a measured temperature — which is precisely why Step 2 calibrates it rather than prescribing it, and why the value shipped above comes from that calibration.

Configuration

# experiment/params_step1_spinup.yaml (excerpt)
defaults:
  - common: iceflow_molho                                     # shared ice-flow setup
  - /user/conf/processes@processes.clim_carra_ela: clim_carra_ela
  - override /inputs:
    - local
  - override /processes:
    - clim_carra_ela          # surface air temperature -> enthalpy boundary condition
    - iceflow                 # velocities -> strain and friction heating
    - enthalpy                # the thermal state: E, E_pmp, T, omega
    - arrhenius               # temperature-dependent flow factor -> back into iceflow
    - subglacial_hydrology    # till water storage -> effective pressure
    - time
  - override /outputs:
    - local

processes:
  enthalpy:
    numerics:
      Nz: 30                        # fine thermal grid...
      vert_spacing: 4.0             # ...packed towards the bed, where the CTS sits
    thermal:
      basal_heat_flux_ref: 0.044    # W m^-2, calibrated in Step 2

  subglacial_hydrology:
    mode: till_storage              # Tulaczyk till hydrology

  time:
    start: 1900.0
    end:   2022.0
    save:  20.0

Run

igm_run +experiment=params_step1_spinup

Roughly two minutes on a GPU. The reported ice volume stays constant throughout — the geometry is fixed, so that is the expected behaviour, not a sign that nothing is happening.

Then compare the modelled thermal structure with the radar:

python tools/plot_cts_sections.py --run outputs/<date>/<time>
python tools/plot_cts_sections.py --run outputs/<date>/<time> --all   # every radar line

Each figure is a vertical section along one GPR line, and carries only three things: modelled temperate ice in red, modelled cold ice in blue, and the radar-observed CTS laid over them as a dashed black line. The modelled CTS is not drawn separately — it is the boundary between the two fills. So the comparison is read directly off the figure: where the dashed line runs through blue, the model made too little temperate ice; where it runs through red, too much.

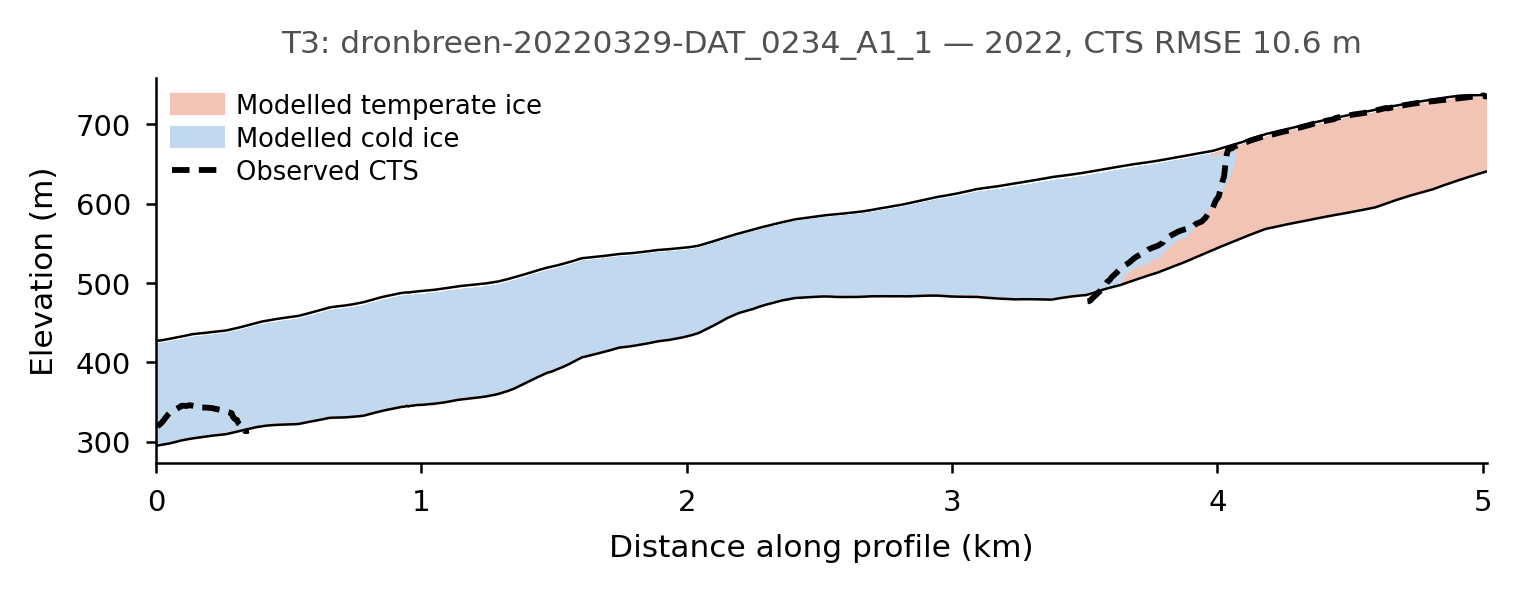

Modelled thermal structure along a GPR line, with the observed CTS overlaid

This is the polythermal structure the example exists to reproduce: cold ice fills the deep central trough, where the ice is thick and the surface is low, while temperate ice occupies both flanks, where it is thinner and closer to the accumulation area. The radar sees the transition climbing the right-hand flank, and the model puts it in much the same place.

With no argument, the script picks the radar line that best displays a transition. Several of the ten cross almost entirely cold ice, or entirely temperate ice, and come out as one flat colour — informative about the glacier, but not about the CTS.

The whole survey

One section shows the shape of the fit on one line. Run --all to get every transect, which is worth doing once:

python tools/plot_cts_sections.py --run outputs/<date>/<time> --all

Transects are labelled T1–T10 in order of how much temperate ice the radar found, so T1 is the most temperate line. The label comes from the observations alone, so it stays attached to the same radar line whatever the model does.

Across the ten of them the model reproduces about 89% of the observed temperate ice in total, which sounds healthy — but that aggregate hides real differences. T5 and T7 come out essentially cold where the radar sees a clear temperate layer, while T6 carries nearly twice the observed amount. Compensating errors of this kind are exactly what a single misfit number conceals, so it is worth looking line by line before trusting the headline score.

Step 2: Calibrating the thermal forcing against the radar

Step 1 prescribes the two heat sources that set the thermal structure, and neither is well known: how much latent heat the accumulation area delivers from above (T_ela, applied above ela), and how much geothermal heat arrives from below (basal_heat_flux_ref). Step 2 lets the observations decide.

How the misfit reaches Optuna

The custom track_cts_err process module loads the GPR profiles when the run starts and, in its finalize hook, extracts the modelled CTS at every radar point by interpolating E - E_pmp to its zero crossing. It writes the mean per-profile RMSE into state.score:

state.score["cost_cts"] = cost

igm_run serialises state.score at the end of every run, and the IGM Optuna sweeper reads it back — so the objective name in the sweeper configuration must match the key:

# optuna/optuna_cts.yaml (excerpt)
objectives:
  - name: cost_cts
    direction: minimize

n_trials: 40
n_jobs: 3                     # three concurrent runs saturate a single mid-range GPU
storage: sqlite:///optuna_cts.db
study_name: dronbreen_cts

sampler:
  method: TPESampler

parameters:
  - name: processes.clim_carra_ela.T_ela
    type: float
    low: -0.5
    high: 2.0
  - name: processes.clim_carra_ela.ela
    type: float
    low: 650.0
    high: 720.0
  - name: processes.enthalpy.thermal.basal_heat_flux_ref
    type: float
    low: 0.030        # W m^-2, brackets the Svalbard estimates
    high: 0.080

Choosing what to calibrate

The length of the spin-up is deliberately not a search parameter. Since the thermal state equilibrates within ~70 years and every trial starts in 1900, the start date cannot affect the cost — searching over it would burn a third of the sweep on a dimension the data cannot constrain. Before adding a parameter, it is worth asking whether the observations can see it at all; tools/plot_optuna.py will show an uninformative parameter as a flat cloud of cost against its value.

Columns with no enthalpy sign change are not discarded but resolved: an entirely cold column has its CTS at the bed, an entirely temperate one at the surface. Dropping them instead would make the misfit blind in one direction — a model that froze the whole glacier solid would contribute no points and so incur no penalty.

How to tell whether a misfit is any good

A misfit in metres means nothing on its own. Before trusting one, ask what a model that knows nothing would score — and this objective deserves that scrutiny, because on 60% of the radar points there is no temperate ice at all. There temperate_elevation equals the bed elevation, so the "observation" is really there is no CTS here rather than a measured surface. If those points dominated, a trivially cold glacier would score well and the calibration would be measuring nothing.

Two null models answer it. Run the same diagnostic against a glacier forced entirely cold (CTS pinned to the bed) and entirely temperate (CTS at the surface), and compare:

cost_cts
All cold — CTS pinned to the bed 37.4 m
All temperate 89.9 m
Calibrated model ≈19 m

The numbers above are for this setup; what matters is the ratio. Roughly halving the error of the best null says the objective carries real information. Had the calibrated run landed near 37 m, it would have been no better than assuming the glacier is frozen throughout — the same number, but worthless.

It is worth going one step further and splitting the misfit by error mode. Here it averages about 27 m where temperate ice is observed against 14 m where the ice is observed cold, so the headline figure flatters the model on the quantity that matters most: the position of the CTS where one exists.

Quoting a null baseline alongside any calibrated misfit is a cheap habit, and it catches objectives that only look meaningful.

Run

igm_run -m \
    +experiment=params_step2_optuna \
    hydra/sweeper=igm_optuna \
    hydra.sweeper.optuna_config=optuna/optuna_cts.yaml

Each trial is a full Step 1 model run, so budget a couple of minutes each; with three in parallel, a forty-trial sweep takes roughly half an hour on a single GPU. Trials land in multirun/optuna_cts/<trial>/, and the study persists in optuna_cts.db, so a sweep can be extended later by re-running the same command.

Changing the trial count

n_trials and n_jobs have to be edited in optuna/optuna_cts.yaml. They cannot be overridden from the command line, because Hydra treats optuna_config as a path to a file rather than as a config group — hydra.sweeper.optuna_config.n_trials=10 fails with a merge error.

Before launching the full sweep, it is worth checking that a single trial produces a cost at all:

igm_run +experiment=params_step2_optuna
cat outputs/<date>/<time>/_igm_score.json     # {"cost_cts": ...}

Inspecting the result

python tools/plot_optuna.py --storage sqlite:///optuna_cts.db --study dronbreen_cts
python tools/plot_cts_sections.py --best-of sqlite:///optuna_cts.db

plot_optuna.py prints the best parameters and draws the cost against each of them. A flat cloud means the observations do not constrain that parameter; an optimum sitting against a bound means the bound should be widened in optuna/optuna_cts.yaml.

plot_cts_sections.py --best-of looks up the lowest-cost trial and plots its section, so the best run can be inspected without hunting for its trial number.

A 64-trial sweep brings the misfit to 18.8 m, with an equilibrium line near 666 m. The values shipped in params_step1_spinup.yaml come from that sweep, so Step 1 reproduces the best trial.

An interactive alternative:

optuna-dashboard sqlite:///optuna_cts.db

Inspecting outputs

Each run writes output.nc in its Hydra directory:

Field Contents
E Ice enthalpy (J kg⁻¹), on the 30-layer thermal grid
E_pmp Enthalpy at the pressure-melting point — the temperate threshold
T Ice temperature (K)
omega Water content fraction in temperate ice
thk, usurf, topg Geometry (constant here)
.hydra/config.yaml The complete merged configuration for the run

The thermal fields carry their own vertical dimension, named after the number of layers (z30 for Nz: 30) so that it cannot collide with the ice-flow one. They can be read directly:

import xarray as xr
ds = xr.open_dataset("outputs/.../output.nc")

temperate = ds["E"] >= ds["E_pmp"]          # boolean, (time, z30, y, x)
temperate.isel(time=-1, z30=0).plot()       # where the bed is temperate, at the end
temperate.sum(("z30", "y", "x")).plot()     # temperate layer count over time

Note that the layers are not evenly spaced — vert_spacing: 4.0 packs them towards the bed — so the fraction of temperate layers is not the fraction of temperate thickness. To convert a column into an actual CTS elevation, use cts_elevation from tools/cts.py, which applies the same stretched grid the enthalpy module used.

Watching the temperate extent grow across the saved time slices is the clearest way to see whether the spin-up has reached equilibrium — if it is still growing at the final year, the run was too short.

Next steps

Data and citation

The radar observations are from Mannerfelt et al. (Mannerfelt et al., 2025)1, trimmed in the example repository to the columns used here; please cite the original dataset if you use them. The surface DEM is from the Norwegian Polar Institute, the bed is reconstructed by kriging of GPR measurements, and the climate fields are CARRA 1990–2024 means.

The physics follows (Aschwanden et al., 2012)2 for the enthalpy formulation and (Bueler & Pelt, 2015)3 for the till hydrology; the Svalbard geothermal flux estimate is from (Schäfer et al., 2012)4.

  1. Mannerfelt, E. S., Enzenhofer, U., Innanen, S., Abderhalden, J., Gillespie, M. K., Ploeg, K., Brunner, J., Kleber, G., Kolar, J., Moholdt, G., Solem, S., & Hodson, A. (2025). Draft dataset publication from mannerfelt et al., (submitted). Zenodo. https://doi.org/10.5281/ZENODO.17882300 ↩↩

  2. Aschwanden, A., Bueler, E., Khroulev, C., & Blatter, H. (2012). An enthalpy formulation for glaciers and ice sheets. Journal of Glaciology, 58(209), 441--457. https://doi.org/10.3189/2012jog11j088 ↩↩

  3. Bueler, E., & Pelt, W. van. (2015). Mass-conserving subglacial hydrology in the parallel ice sheet model version 0.6. Geoscientific Model Development, 8(6), 1613--1635. https://doi.org/10.5194/gmd-8-1613-2015 ↩

  4. Schäfer, M., Zwinger, T., Christoffersen, P., Gillet-Chaulet, F., Laakso, K., Pettersson, R., Pohjola, V. A., Strozzi, T., & Moore, J. C. (2012). Sensitivity of basal conditions in an inverse model: Vestfonna ice cap, Nordaustlandet/Svalbard. The Cryosphere, 6(4), 771--783. https://doi.org/10.5194/tc-6-771-2012 ↩
